Display is 8 digits, green fluorescent.
4-functions, constant.

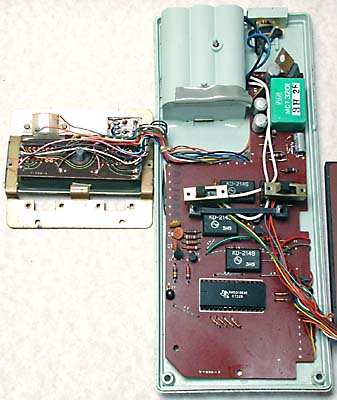

Main integrated circuit - Texas Instruments TMS0105NC, in this example it is date coded week 28 1973.
9v (6x AA).
95 mm x 225 mm x 46 mm (3.75" x 8.9" x 1.8").
1973.

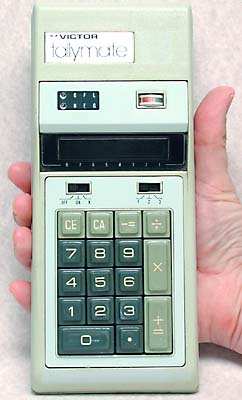

Has battery-level meter, on the right above the display. On the left above the display are red LEDs to indicate "Overflow" and "Negative number". The switch on the right has settings at "F-2-3", to set decimal
point mode to Floating point, 2, or 3 places of decimals.
Made in Japan, for Victor Comptometer Corporation Business Machines Division, Chicago, Illinois.
|
