Brunsviga 10 |
||||
|
|
|

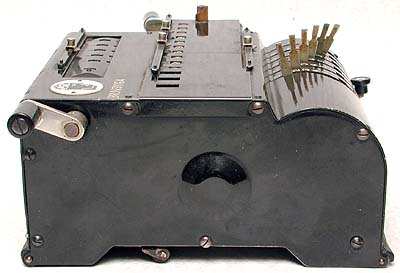

Brunsviga 10 6-digit setting register, 10-digit accumulator register, 5-digit revolutions register. This model was made in Germany from 1932 to 1945. 230 x 190 x 95 mm (9.0" x 7.5" x 3.75"), when the rear support is folded up, about 3 Kg (7 lbs). At first sight this appears to be a pinwheel calculator of the Odhner type, and I was fooled till told otherwise and explored inside. The machine in fact utilises a modified form of stepped gear mechanism arranged to give a very compact layout - see photographs below. The giveaway that it is not a pinwheel mechanism is that the setting lever assembly does not revolve when the crank handle is turned, see the Odhner calculator. Manufactured by the firm of Grimme, Natalis and Company A. G. of Braunschweig, Germany, which acquired the patents of the Original Odhner in 1892. It manufactured and improved the pinwheel calculator and sold it under the name Brunsviga. The usual arrangement of machines of the pinwheel type, as in the Odhner, is to have the setting register at the top of the machine, with the accumulator and the revolution counter side by side below. Brunsviga produced updated models with this arrangement up to the 1970s. On this model a support plate at the rear folds down to tilt the machine forwards and present the controls to the operator at a better angle. With this support plate folded up to give a height of only 95mm (3.75") the machine is small enough to fit in a decent sized brief case, though is still fairly heavy at about 3Kg (7 lbs). In modern parlance it would be described as "luggable". |
|
|
|||||||||||||||
|
|
|||||||||||||
|

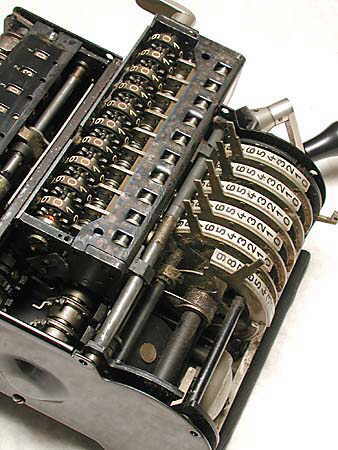

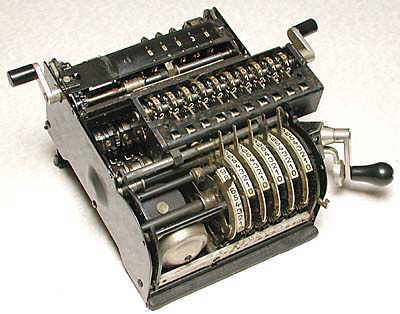

Although with the covers on the setting levers appear to be part of a pinwheel calculator, removing the covers reveals a different mechanism. Compare with the pinwheel mechanism in the Odhner calculator. Moving a setting lever causes a linkage at the bottom to shift a stepped gear sideways, see photographs below. |
|||||||||
![]() |
|||||||||
|

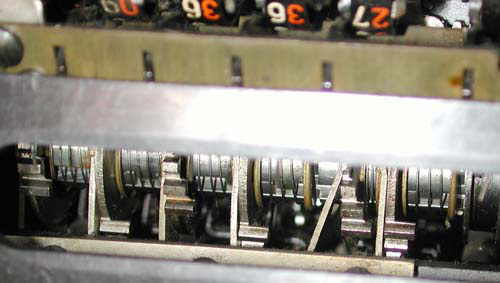

Looking from the rear with the cover off, the stepped gears can be seen. Each gear is moved sideways when it's setting lever is moved, as shown in the photograph below, so that it engages a different number of teeth with the
gear in the accumulator register. When the crank handle is turned the accumulator in each position is advanced by the number of teeth engaging. To make the machine more compact the stepped gears have a maximum of 4 teeth only. Then when the setting lever is moved from 4 to 5 the stepped gear moves back to the left to the zero-teeth-engaged
position, but another full gear wheel is moved into the train which always advances the accumulator by 5 when the crank is turned. |
|||||||||
![]() |
|||||||||
|

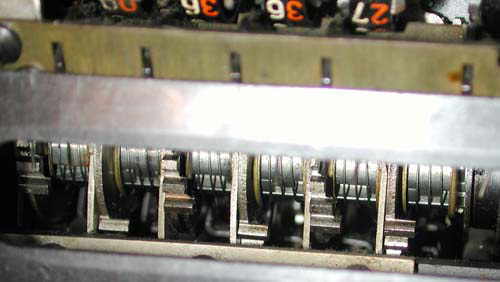

The setting lever connected to the second stepped gear from the right has been set to 4. The mechanism can be seen to have pushed the stepped gear to the right so that 4 teeth will engage with the accumulator mechanism for this
position. For further information on Brunsviga calculators see the mechanical calculator site of Herbert Schneemann and Walter Szrek. |
|||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
