Six Navigation Calculators

By the mid-1970s the standard electronics for calculators was well developed and companies turned to producing calculators for more specialised uses.  One of the areas that was suitable for specialised calculators was navigation, by sea or air, and several models were soon on sale, including those shown here:

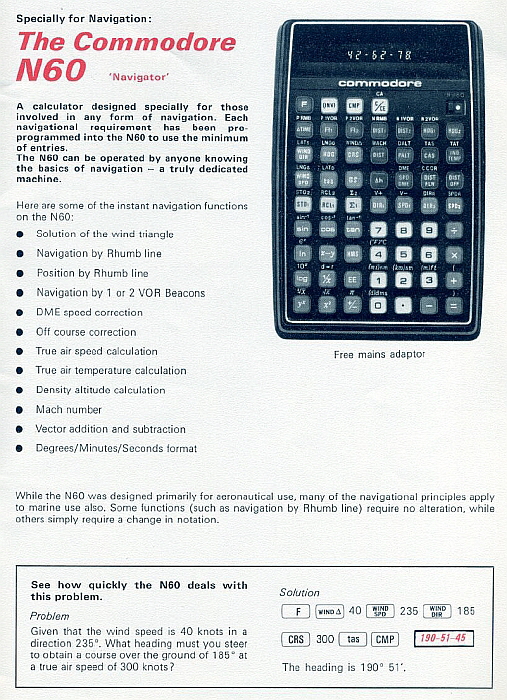

Commodore N-60

Commodore N-60 navigation calculator

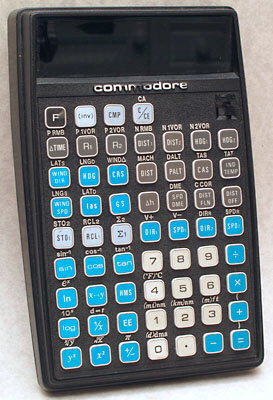

Commodore N-60.

Distinctive features: Navigation calculator with 60 keys.

Technical details:
Display is scientific notation 10 digits mantissa and 2 digits exponent, red LED.

4-functions and navigation.

103 x 154 x 34 mm (4.1" x 6.1" x 1.3").

Made in England.

This calculator is named after its navigation functions and the number of buttons.

Commodore was a prolific manufacturer of calculators in the 1970s before moving to personal computers.

Heathkit OC-1401 & OCW-1401

Heathkit OCW1401
Heathkit OCW1401 circuit board

Heathkit OC-1401 & OCW-1401

Distinctive features: Aircraft Navigation Computer and general purpose scientific calculator.

Was available as a self-assembly kit (model OC-1401) or ready assembled (model OCW-1401).

Technical details:
Display is red LED.

Aircraft navigation functions and general purpose scientific calculator.

Uses three Mostek MK3870 8-bit mask-programmed micro-controllers (a single chip implementation of the Fairchild F8).  These are the large black integrated circuits in the photograph above right.

4-AA rechargeable batteries.

162 x 83 x 41 mm (6.4" x 3.3" x 1.6").

Made in U.S.A.

Grateful thanks to Tony Duell for providing these photographs of the Heathkit OCW-1401.
There are more photographs of this calculator on Tony's Flickr pages at www.flickr.com/photos/tony_duell/albums/72157622514417765/with/4033952921/
Tony also has Flickr pages featuring many more items of vintage electronic equipment at www.flickr.com/photos/tony_duell/albums/with/72157622514417765

Heathkit OCW-1401 in fitted case

Heathkit OCW-1401 in its fitted case, together with power adapters.

Specialized Electronics Corporation Navtronic 16

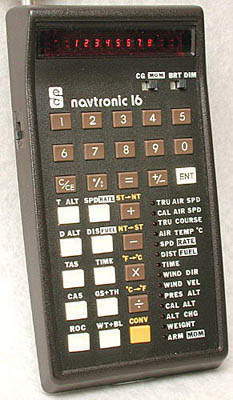

Navtronic 16 aircraft navigation calculator

Specialized Electronics Corporation (SEC) Navtronic 16.

Distinctive features: Aircraft navigation calculator.

Technical details:
Display is 8 digits, red LED.

4-functions & navigation.

Main integrated circuits - National Semiconductor NS MM5728N and MM57129NBL/N, here date coded mid 1976.

6v (4 x AA batteries) .

81 x 151 x 38 mm (3.2" x 5.9" x 1.5").

Specialized Electronics Corporation, 4428 North Elston Ave., Chicago, Illinois 60630.

This is a very specialised calculator and has integrated circuits dedicated to navigating in aircraft.

Inside Navtronic 16

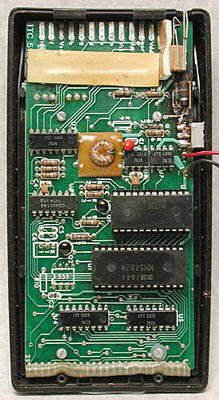

The circuit board of the Navtronic 16, showing the NS MM5728N and MM57129NBL/N main integrated circuits.  These devices are mounted in sockets so can be easily replaced if necessary in this expensive calculator.

Tamaya NC-2

Tamaya NC-2 Astro-Navigation Calculator

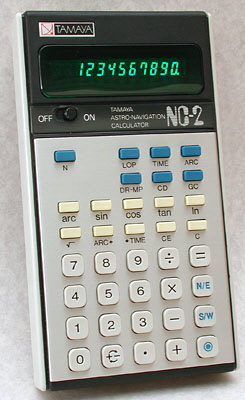

Tamaya NC-2 Astro Navigation Computer.

Distinctive features: Astro navigation calculator.

Technical details:
Display is 10 digits, green fluorescent.

Scientific and navigation functions.

6v (4 x AA batteries) .

82 x 150 x 28 mm (3.25" x 5.9" x 1.1").

About 1976 (date on instruction manual).

Tamaya & Company Limited,
Tokyo, Japan

Made in Japan.

Tamaya is a well known manufacturer of navigation instruments and produced mechanical instruments before these electronic calculators.

This is also a very specialised calculator using dedicated integrated circuits. The fitted wooden case is evidence of the respect which Tamaya had of its intruments.

Tamaya NC-2 in case

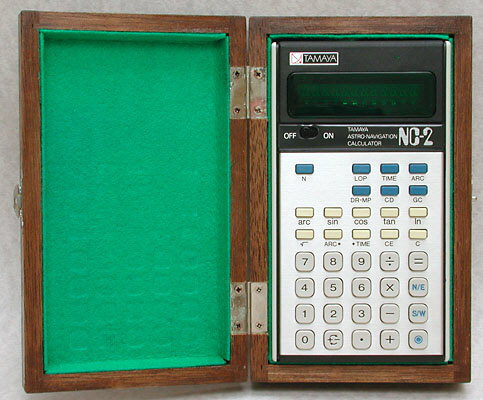

The Tamaya NC-2 in its fitted wooden case.

Tamaya NC-77

Tamaya NC-77 Digital Navigation Computer

Tamaya NC-77 Digital Navigation Computer.

Distinctive features: Astro navigation calculator.

Technical details:
Display is 10 digits, green fluorescent.

Scientific and navigation functions.

Integrated circuits - Surface mounted, types SC38664 and SC38665, here date coded early 1978.

6v (4 x AA batteries) .

82 x 150 x 27 mm (3.25" x 5.9" x 1.1").

Produced from 1978 to 1991.

Tamaya & Company Limited,
Tokyo, Japan

Made in Japan.

Tamaya is a well known manufacturer of navigation instruments. It has a website which gives the above production dates.
The website also gives details of how to use the calculator into the year 2000 and beyond. By entering the date as the 99th day of the 99th month of 1999 !!! it is possible to use it up to June 23 2007. A table to print out gives all the necessary conversions.
If this is too troublesome you can buy the latest model the NC-2100G.

This is also a very specialised calculator using dedicated integrated circuits. The fitted wooden case is evidence of the respect which Tamaya had of its intruments.

Production over the the 14 years of 1978 to 1991 is probably a record length of time for any electronic calculator of the 1970s. It is beaten by the Hewlett Packard 12C financial calculator which was introduced in 1981 and is still in production.

The Tamaya NC-77 appears to have been manufactured by Sharp - the casing closely resembles that of the Sharp EL-8018.

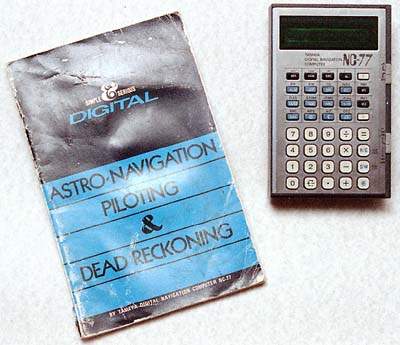

Tamaya NC-77 & instructions
Tamaya NC-77 in wooden case

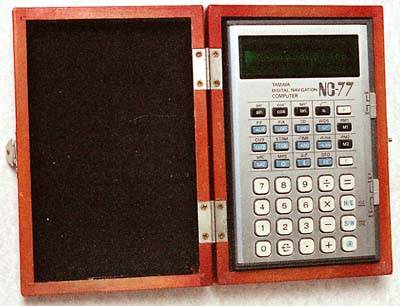

The Tamaya NC-77 in its fitted wooden case.

Tamaya NC-77 inside

Inside the Tamaya NC-77.  The "quad flat package" surface mount integrated circuits can be seen at top-right and in the centre.

Texas Instruments Navigatronic

Texas Instruments Navigatronic

The Navigatronic in its opened wooden case which presents it at a convenient angle for use.

Texas Instruments Navigatronic.

Distinctive features: General purpose programmable calculator fitted with a Navigation Module.

Technical details:
Display is 8 digits, red LED.

Scientific programmable and Navigation functions.

Main integrated circuits - Texas Instruments TMC0501 and TMC0583.  The calculator casing here is date coded mid 1978.

Rechargeable battery pack containing 3x AA batteries.

Calculator size is 80 mm x 146 mm x 34 mm (3.1" x 5.75" x 1.3").

Assembled in Holland.

In contrast to the SEC Navtronic and the Tamaya NC-2 & NC-77 this is a general-purpose Texas Instruments Programmable 58 calculator which is reprogrammed by the Navigation Module to give a navigation calculator.

The magazine 'Hobby Electronics' reported in March 1979[1]:
"SEA WHERE YOU ARE
   Texas Instruments have announced the introduction of an electronic navigation aid for sailing addicts.
   The system, called Navigatronic, comprises a TI-58 programmable calculator, a marine navigation program library, a 12-24V DC adapter/charger and a marine navigation quick reference guide, all mounted in a brass-handled mahogany case.  A 220V AC adapter/charger for shore use is also supplied.
   The package is designed to meet the needs of racing, cruising and ocean crossing navigation.  The calculator has up to 480 program steps and a solid state library of 30 programs is available at the touch of a key.  These deal with coastal and celestial navigation, with sailing and tactical programs for the racing sailor.
   If you don't believe you are where the system says you are, there is an additional diagnostic program to confirm correct operation of the calculator and library-calculator interface.
   The TI Navigatronic package costs £149.95
[approx. US$300] (RRP incl. VAT).  Texas Instruments Ltd., European Consumer Division, Manton Lane, Bedford, MK41 7PA."

The TI Programmable 58 calculator.

Inside TI-58

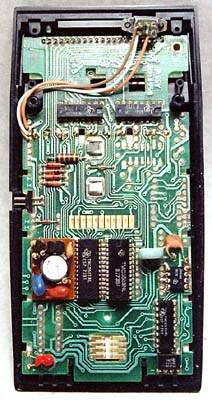

The calculator with the rear cover removed.

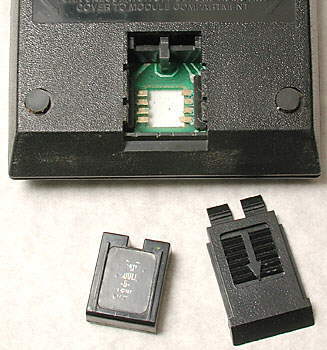

TI Navigation module

The Navigation Module is inserted in the back of the calculator in place of the standard Master Library Module.

Texas Instruments Navigatronic

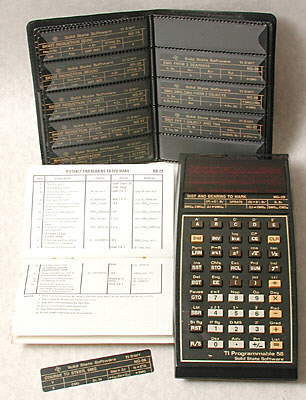

The Navigatronic has a wallet of plastic inserts. These can be inserted in a slot above the keyboard to show the remapping of the top row of keys when running the different programs stored in the Navigation Module.

TI Navigatronic Case

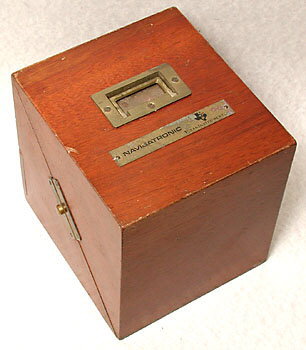

The wooden case closed.

TI Navigatronic12v power supply

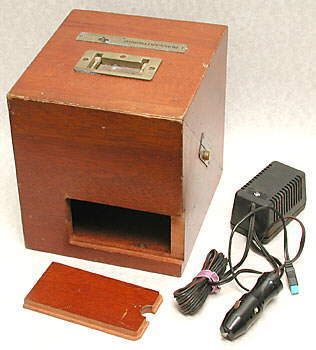

In the rear of the case is a compartment for storing the convertor for operating the calculator from a 12-28V DC supply.
