	Rapid Data Rapidman 800



	Rapid Data Rapidman 800 Distinctive features: Low-cost hand-held calculator, achieved by using a one-piece injection moulding for the whole casing and keyboard, and a low-functionality "calculator on a chip" integrated circuit. Technical details: Display 8 digits, red LED. Four-function - Fixed decimal point (2 places of decimals). Integrated circuit - Mostek MK5010P, & 24 transistors. 9v (PP3). 80 x 137 x 23 mm (3.15" x 5.4" x 0.9"). Introduced February 1972, cost just under $100 / £40 Sterling. Rapid Data Systems & Equipment Ltd., Made in Canada.

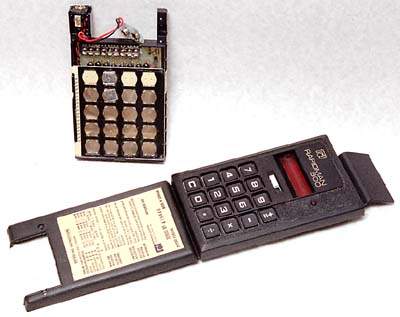

Inside Rapid Data Rapidman 800

The two main parts of the calculator:

The circuit board & keypad assembly.
The one-piece case.



	The main circuit board carries the calculator integrated circuit, a couple of dozen discrete transistors, and the LED display.

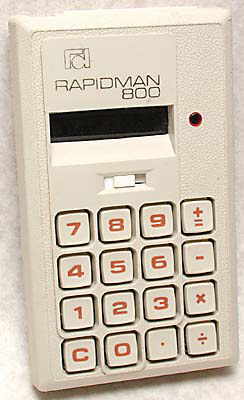

	This calculator can be found, less commonly, in a cream or dark green casing.


	This was a very low-cost calculator - the first sub-US$100 / sub-£40 Sterling electronic calculator. This was achieved by using a single "calculator on a chip" integrated circuit, a low-cost keypad design, and an ingenious one-piece polypropylene moulding for the case incorporating the front, the back, the key caps, and the battery compartment cover. But this does give it a very cheap feel.
