Royal Digital III and Digital IV

Royal Digital III

Royal Digital III

Royal Digital III

Distinctive features: Low-cost hand-held calculator, achieved by eliminating normal keys and having only a 4-digit display.

Technical details:
Display is 4 digits, blue individual vacuum fluorescent tubes.
Calculations are actually performed to 8 digits and the display can be swapped between the high 4 digits and the low 4 digits using the "<->" key.

4-function.

Is operated by touching the circuit board through the windows in the casing using the stylus.

Main integrated circuit - General Instruments GI 250 (here date coded 7208).

7.2 v (6 x AA rechargeable cells).

81 mm x 165 mm x 39 mm (3.2" x 6.5" x 1.6").

Introduced late 1971/early 1972.

Made in U.S.A. by Royal Typewriter Company, Hartford, Conn.

Inside Circuit boards

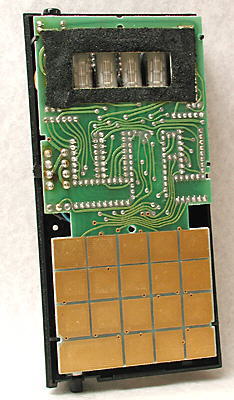

With the cover removed to reveal the circuit board with the gold-plated stylus contact areas.

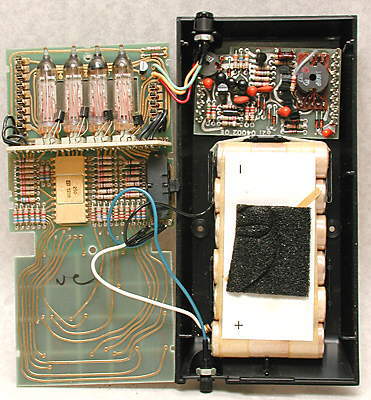

The main circuit board carries the calculator integrated circuit and the four display tubes. The base of the calculator holds a pack of six AA size rechargeable cells.

Royal Digital IV

Royal Digital IV Royal Digital IV in hand

Royal Digital IV

Distinctive features: Low-cost hand-held calculator, achieved by eliminating normal keys.

Technical details:
Display is 8 digits, red LED.

4-function.

Is operated by touching the circuit board through the windows in the casing using the stylus.

Main integrated circuit - General Instruments GI 251 (here date coded 7206).

7.2 v (6 x AA rechargeable cells).

81 mm x 165 mm x 39 mm (3.2" x 6.5" x 1.6").

Introduced late 1971/early 1972.

Made in U.S.A. This example "Made in USA for Imperial Typewriter Company Limited, Leicester, England".



From the magazine "Electronics", Jan. 3rd, 1972 -
"Royal Consumer Products division, Hartford, Conn., a part of Litton Industries. With its Digital III and IV, made by the Monroe division of Litton, Royal is in a position to market these units to consumer outlets, from mass merchandisers to the corner stationery shop. With quantity discounts and prompt payment, dealers get these machines for under $90. Suggested retail prices are $139 and $149 [about 58 & 62 Sterling]."

Price in UK, June 1972, 52-50.

Royal, Imperial Typewriter, and Monroe were all part of the Litton Industries empire.

Royal Digital IV keyboard

With the cover removed to reveal the circuit board with the gold-plated stylus contact areas and the LED display.

Inside Royal Digital IV

The main circuit board carries the calculator integrated circuitwhile the base of the calculator holds a pack of six AA size rechargeable cells.

At this time calculator keyboards were complicated and expensive components. To cut this cost this calculator shows gold-plated pads on the circuit board through the front of the calculator. Touching a pad with the electrically connected stylus has the same effect as pressing a key on a standard calculator.

Only the Royal Digitial III and Digitial IV are known to have this stylus feature.
