NCR 18-15 / Busicom Junior
(Early Multi-chip Version)
NCR 18-16 / Busicom Junior
(Later Single Chip Version)
This page features two versions of the Busicom Junior small electronic desktop calculator:

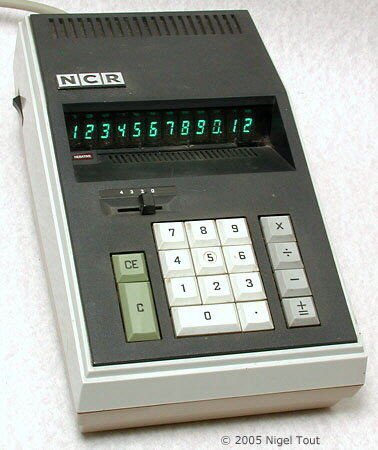

NCR 18-15 (a re-badged first version of the Busicom Junior)
Distinctive features:
A small, desktop electronic calculator using 22 integrated circuits.
Technical details:
Capabilities - 4 functions.
Display - 12 digits, separate green vacuum-fluorescent tubes.
Technology - Uses 22 integrated circuits, from Mitsubishi, Toshiba, and NEC (here date-coded 1970) and 260 diodes.
Size - 160 x 275 x 97 mm (6.25" x 11" x 3.8") - this is slightly larger than the later NCR 18-16, below.
Made in Japan by Busicom Corporation for NCR (National Cash Register).
Price of the Busicom Junior version of this model calculator, in UK in 1971, £168 GBP[1] (about US$400).
The NCR 18-15 is the immediate predecessor of the NCR 18-16, below. Although looking roughly the same, the NCR 18-15 is actually 12mm (0.5") thicker to accomodate the three circuit boards against the single board of the NCR 18-16.

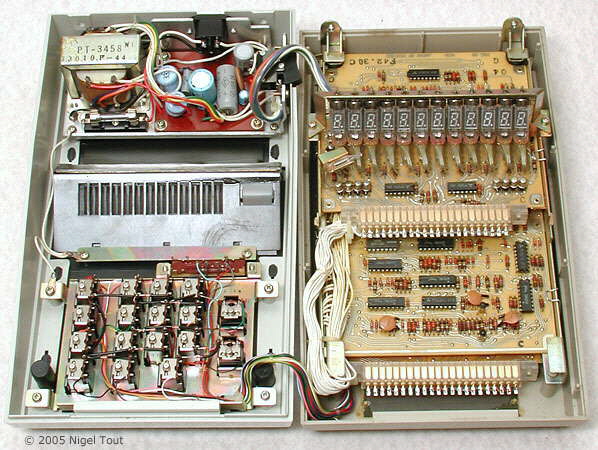

Inside the NCR 18-15, with, on the right, the two large circuit boards and the small display boards.

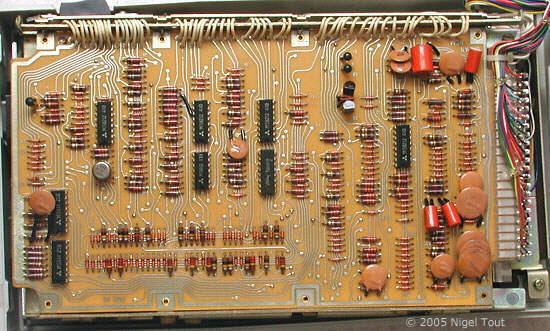

The upper circuit board of the NCR 18-15.

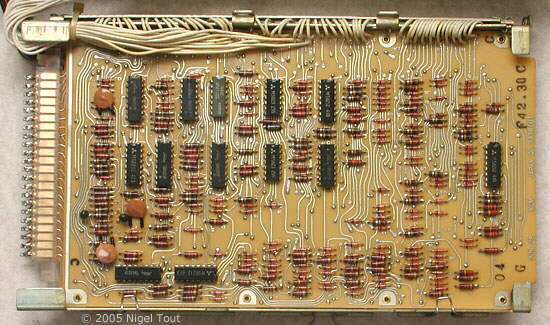

The lower circuit board of the NCR 18-15.
NCR 18-16 (a re-badged second version of the Busicom Junior)
Distinctive features:
The first time that all of the electronics of a four-function calculator was squeezed into a single integrated circuit—a "calculator-on-a-chip".
Technical details:
Capabilities - 4 functions.
Display - 12 digits, separate green vacuum-fluorescent tubes.
Technology - The first use of a "Calculator on a Chip": the Mostek MK6010 LSI (Large Scale Integration) chip, here date coded 7125 (that is week 25 of 1971).
Size & weight - 160 x 275 x 85 mm (6.25" x 11" x 3.5"), 1600 g (3.5 lbs).
Introduced late 1970-early 1971.
Made in Japan by Busicom Corporation for NCR (National Cash Register).
The NCR 18-16 is a development of the NCR 18-15, at top. Although looking roughly the same, the NCR 18-15 is actually 12mm (0.5") thicker to accomodate the three circuit boards against the single board of the NCR 18-16.

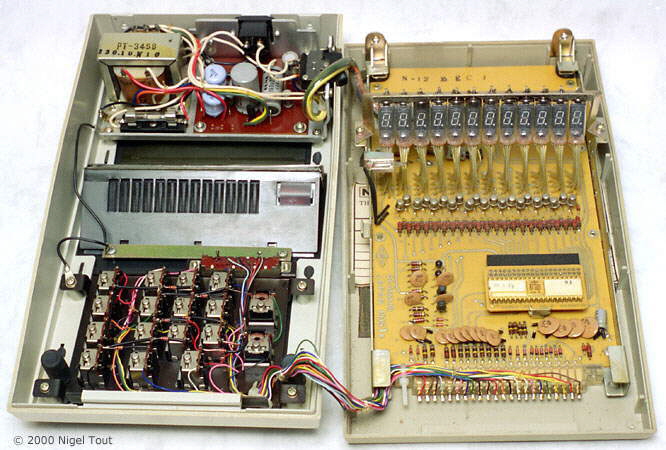

Inside, showing the circuit board with the single Mostek MK6010 "calculator-on-a-chip|". Compare with the earlier model the NCR 18-15, above.

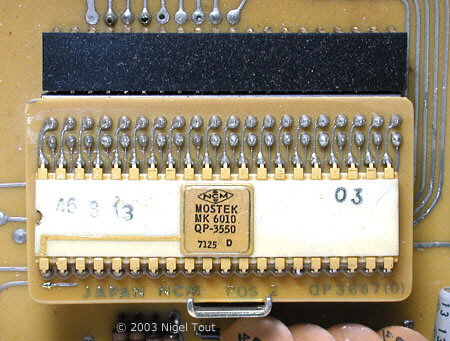

Cutting edge technology of 1971, the Mostek MK6010 "calculator on a chip" in a Busicom Junior calculator. The integrated circuit illustrated is date coded 7125 (i.e. 1971, week 25) and is also marked with the 'NCM' logo (Nippon Calculating M achines—the original name of Busicom Corp.).
The IC is mounted on a small piece of circuit board which plugs sideways into the black socket.
"Calculator-on-a-Chip"
The magazine "Electronics" for Feb 1st. 1971 reported[2]:
"Mostek produced the first calculator on a chip for Busicom Corp. The 180-mil-square [0.18 inches-square (4.6 mm-square)] chip contains the logic for a four function 12-digit calculator - more than 2,100 transistors in 360 gates plus 160 flip-flops. Busicom's initial use of the chip will be as a direct replacement in its Junior model calculator now being distributed in the U.S. by National Cash Register."
The chip held in the hand replaces the two circuit boards full of components, including 22 MSI (Medium Scale Integration) integrated circuits, see article quoted and the NCR 18-15 above.
The single chip, using a p-channel process, replaced 22 chips in the previous version of this Busicom Junior calculator, see below, and reduced the number of circuit boards from two to one. Note that separate transistors are still needed as high-voltage display drivers.
The article continues ... "The original calculator's discrete diode-resistor and IC logic was a very clever design, says Mostek, developed over many years and requiring nearly the minimum logic necessary for a four-function machine. ... the minimised logic contributed greatly to Mostek's success in putting a calculator on a single chip".
Mostek of Dallas was then less than 2 years old.
See also the article "The Calculator-on-a-Chip" on this site.
This was the first use ever of a single chip for all the functions of a calculator, described then as a "Calculator-on-a-Chip". It was the cutting-edge technology of the day .
This development was the culmination of the gradually increasing integration during the late 1960s, accompanied by reducing the number of components. Driving the display required higher power transistors which could not be easily integrated with the logic circuits on the chip, but within a couple of years this was achieved and the only electronics required for a simple calculator was the one chip.
The reduction of the calculator logic to a single chip had two immediate effects:
The development of electronics had now reached the stage at which a truly pocket-sized calculator was possible—the Busicom Handy LE-120.
